Quick Details

  • Application: Laser Cutting
  • Condition: New
  • Laser Type: CO2
  • Applicable Material: Acrylic, MDF, Metal, Plexiglax, Plywood, Rubber, Wood
  • Cutting Thickness: 0-25mm
  • Cutting Area: 1250mm*1800mm
  • Cutting Speed: 25-30M/H
  • CNC or Not: Yes
  • Cooling Mode: Air Cooling
  • Control Software: AutoCAD
  • Graphic Format Supported: AI, BMP, DXF, DXP, PLT
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TESIDE
  • Model Number: TSD-LC-1218
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas

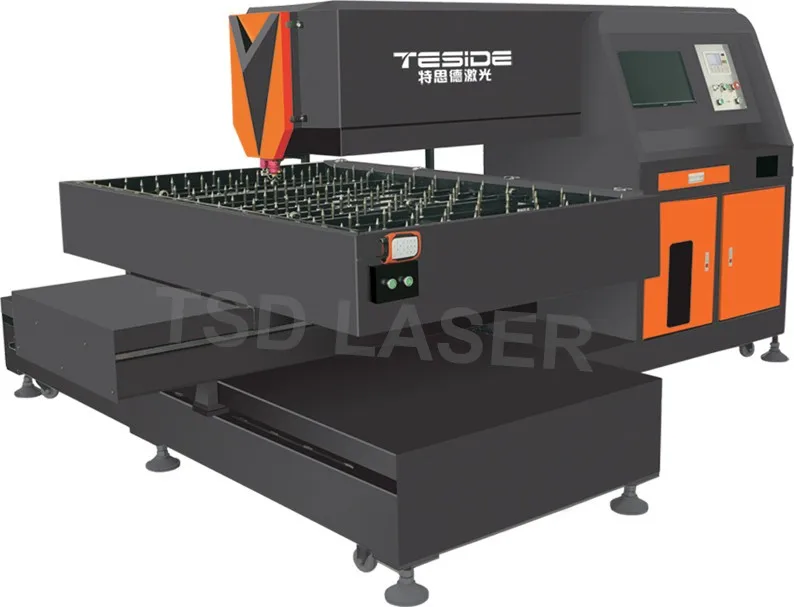

  • Product name: Die board CO2 laser cutting machine
  • Laser power: 400w /600w
  • Laser type: high power axial flow CO2 laser tube
  • Working area: 1250mm*1800mm
  • Cutting materials: Acrylic, Leather, MDF, Metal, plastic, Plywood, Rubber, Wood...
  • Driving system: Yaskawa Servo Drive and motor System
  • Power supply: 380V 50Hz 12KVA
  • Cutting precision: ±0.05MM
  • Mould Knife Thickness/Slit Width: 0.45mm,0.71mm,1.05mm..etc.
  • Working gas: He, H2, CO2

Packaging & Delivery

Packaging Details Standard export sea-worthy wooden packing
Delivery Time Shipped in 20 days after payment
Product Description

Product Application

Applications:
It’s widely used in printing, package, mould and advertising  industries.

Applicable materials:
Plywood, MDF board, acrylic and steel sheet...etc.


You can check machine working video on my Facebook: cl_zwx(at)126.com

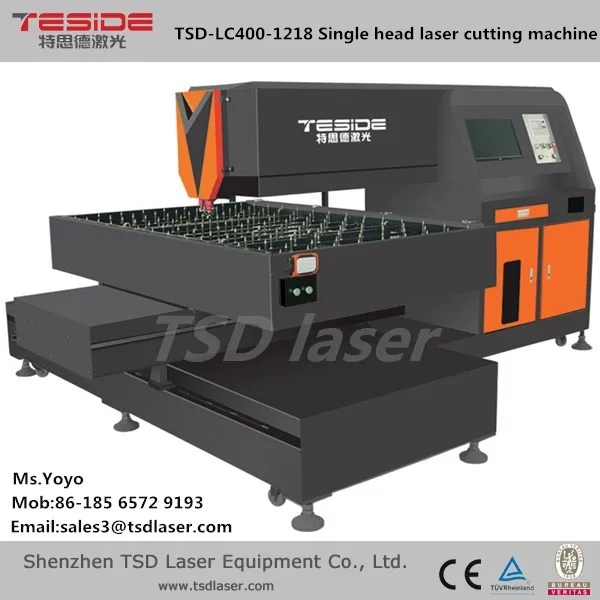

SPECIFICATIONS FOR HIGH POWER LASER CUTTING MACHINE
Machine name
Die board CO2 laser cutting machine
Model No.
TSD-LC-1218
Laser  tube
CO2 Sealed laser tube
Cutting depth
6mm-22mm plywood
Laser power
400w/600w
Assistant equipment
Air Dryer, industrial chiller, Exhaust Fan, Computer System
Recommend spare parts
Laser Tube and Lens
Controlling system
Movement control card/NC
Transmission system
Ball screw & Linear guide
Mould knife thickness
0.45mm, 0.71mm,1.07mm…etc. controllable
G. Weight
2000KGS
Power supply
220V /50Hz/20A
H.S Code
8456100090

Main Features

1)Gantry structure, stable working, small floor space required for machine.
2)Laser cutting head coming with automatic touching system, adapt to the jagged materials and keep cutting kerf                 precision.
3)Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision                 cutting.

4)Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment     for operator.
5)Automatic gas control system to ensure low energy consumption operation power consumption and gas                                 consumption.
6)Software is easy to operate and simple, easy to understand
7)Be equipped with the optical path gas compensation function that can avoid difference and divergence of the beam           during the conduction process by gas disturbance, and can always maintain the positive pressure of clean gas in the         optical cavity to prevent external smoke and enter in.
8)Be equipped with the full compensation device in optical path of autonomous developed, to ensure the consistency of     the beam diameter and the constancy of the focus in the entire range of processing.

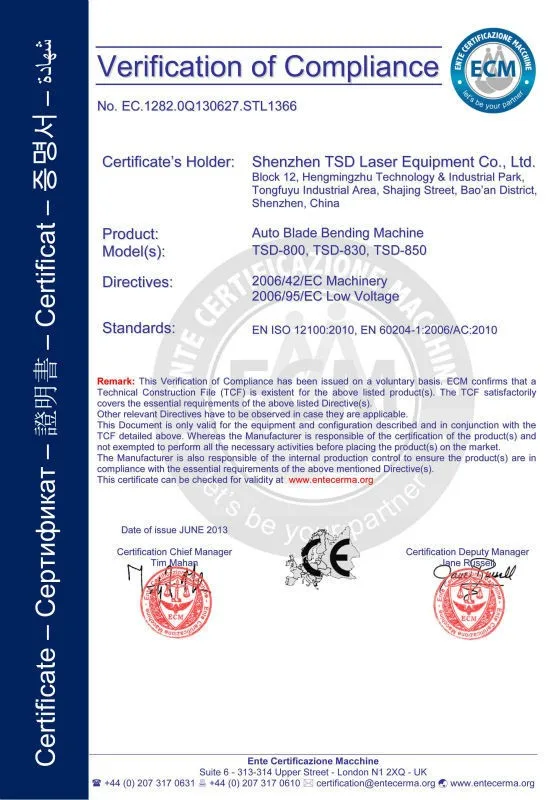

Certifications
Detailed Images

Machine Parts

Name: Working table

Brand: TSD laser company

Original: China

TSD scientific design, gantry structure, stable working, small floor space required for machine. Laser cutting head coming with automatic touching system, adapt to the jagged materials and keep cutting kerf precision. Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.

Machine parts

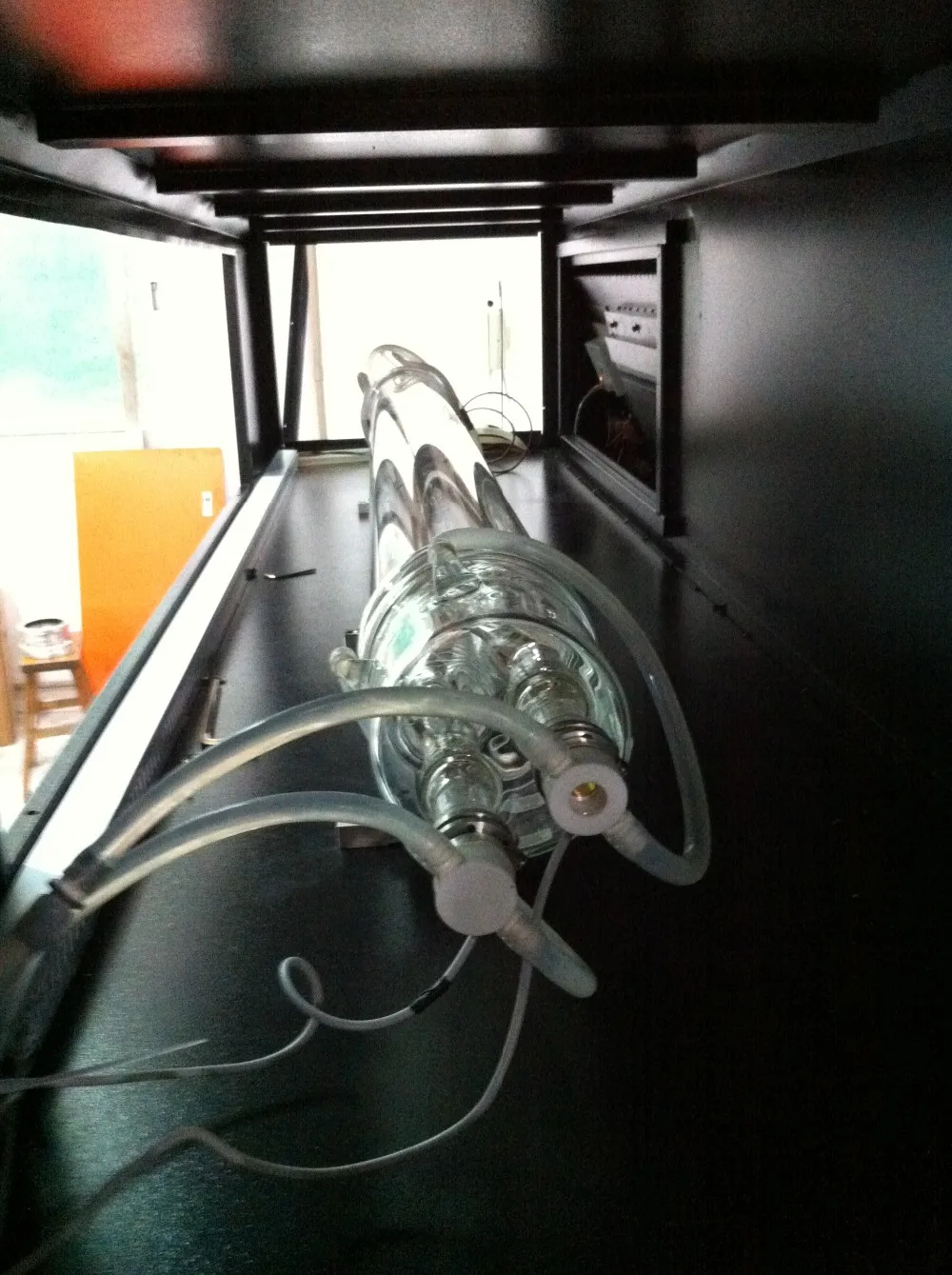

Name: Laser tube
Brand: TSD Laser
Original: China
The laser tube has a rugged, long-term stable and reliable work, long life, maintenance-free, cost-effective advantages. Has been widely used in printing and packaging, process gifts, clothing accessories, leather, fabric cutting, cutting sheet metal, rubber and other fields.

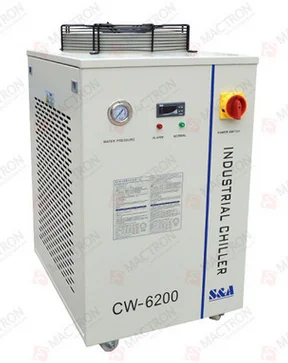

Machine Parts

Name: Industrial Chiller
Brand: S&A
Original: China

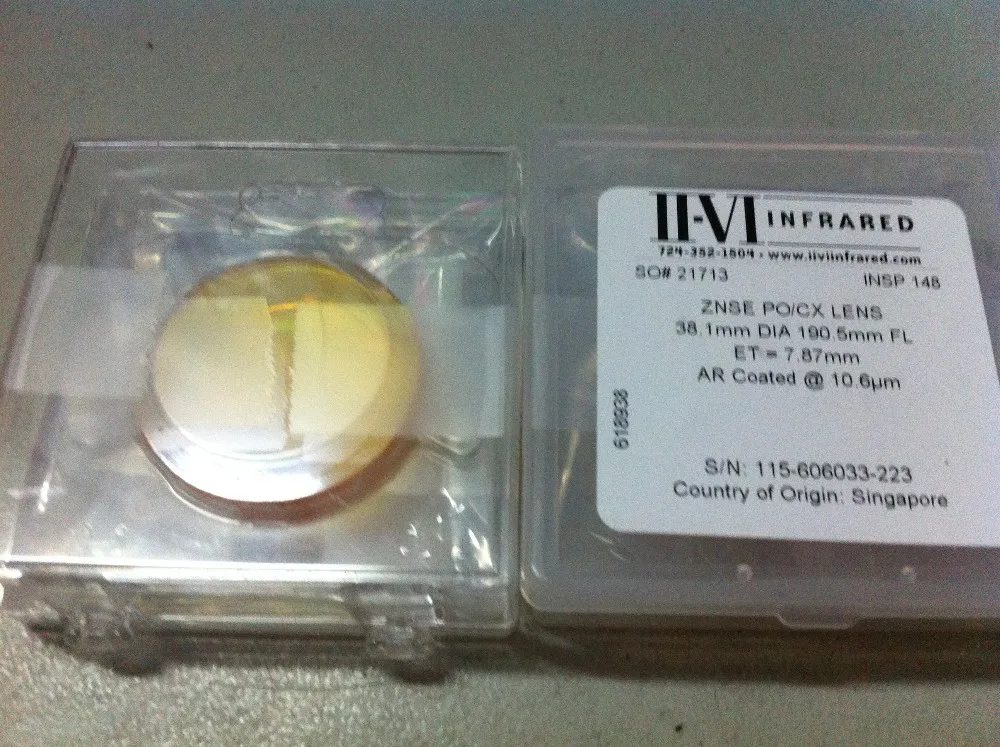

Spare parts

Name: laser lens
Brand: USA Ⅱ-Ⅵ
Original: Singapore

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

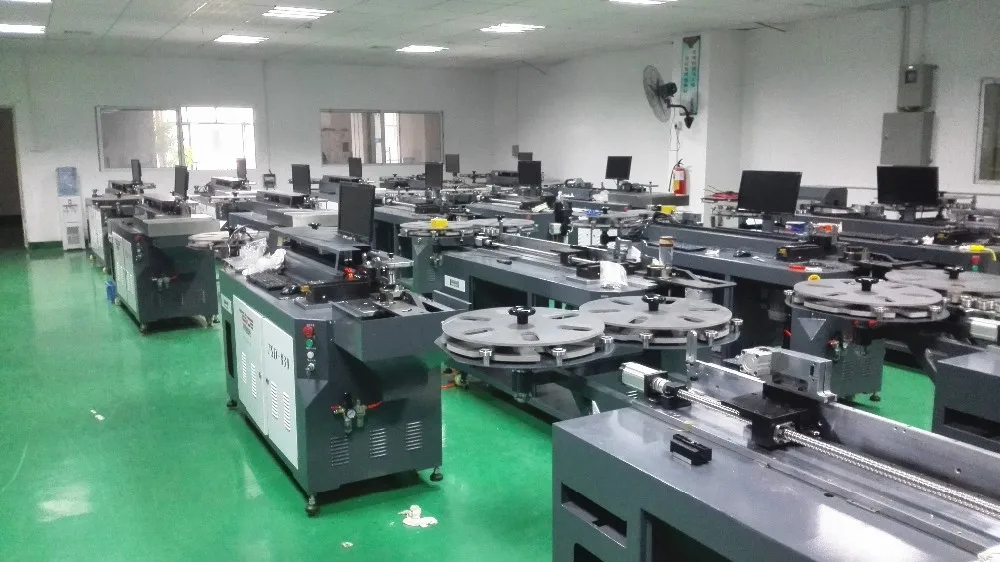

* View our Factory.

*Technical support

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Experienced & English-speaking engineers available to service machinery overseas.

*Free software update , lifetime Technical Support

Packing & Delivery

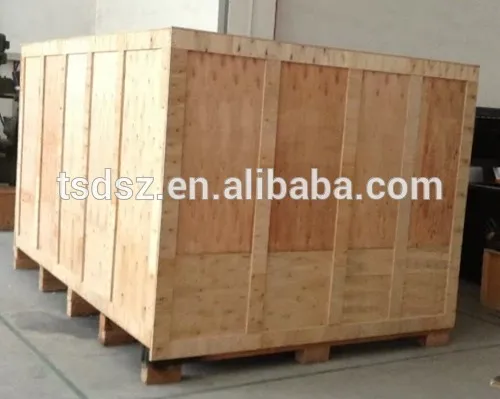

Packaging
Standard export sea-worthy wooden packing or pack it according to customers special request.

working table size
(L*W*H)

L2.87 x W1.92x H1.22 (M)
G.W:800KGS

main machine
(L*W*H)

L2.64 x W1.05x H1.84(M)
G.W:800KGS

Delivery

1) Payment term: 40% T/T as down payment,60% T/T before shipment.
2) Delivery term: 20-25 working days after receiving 40% down payment from buyer.
3) Warranty: One year for machine, 8 months for laser tube, half year for laser lens. (excluding personal damage)

Company profile

Shenzhen TSD Laser Equipment Co.,Ltd.


we are professional manufacturer of laser cutting machine from 2009.

Until now, we have over 2000 users in around 50 countries in the world.

TSD machines have been exported to Bolivia, Colombia, Brasil, Finland, Greece, Italy, Poland, Ukraine, Russia, Indonesia, Thailand, Vietnam, Kuwait, Egypt, South africa, Malaysia, Philippines, Singapore, Burma, Pakistan, Srilanka, Iran, Kuwait, Qatar, Saudi Arabia, U.A.E, Syria,Turkey, Egypt, Algeria, Angola, Tunisia, Sudan ...and so on.

Now we have agents in Indonesia, Pakistan, Finland, Algeria, Vietnam...etc.

Address: No.H Building,  Shasi High-Tech  Park, Shajing Street, Bao'an District, Shenzhen, 518104, China

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ

1. What’s the guarantee, in case the machine breaks down?
The machine has 1 years' guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients' feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.


2. What’s the trade term?
Both FOB and CIF is OK.

3. What’s the payment terms?
30% deposit, 70% balance before delivery by T/T is prefer.

4 .Do we have any certificate?
CE, TUV with BV certificate

5. How about the documents after shipment?
After shipment, we will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.

6. Do you arrange shipment for the machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
